Pursuit of Perfection

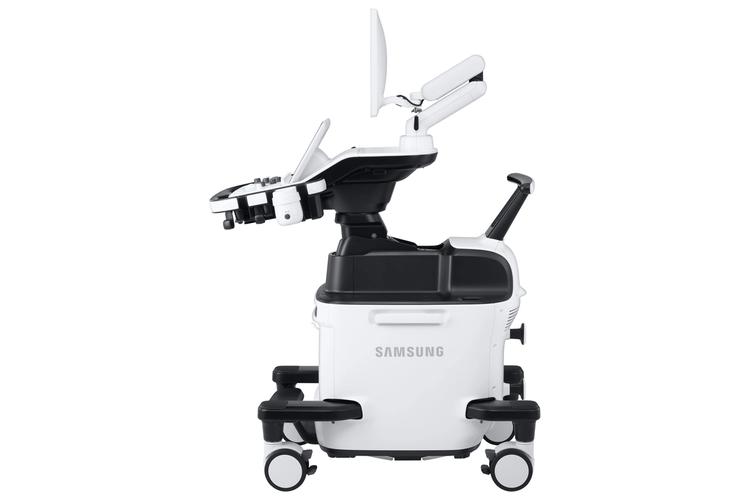

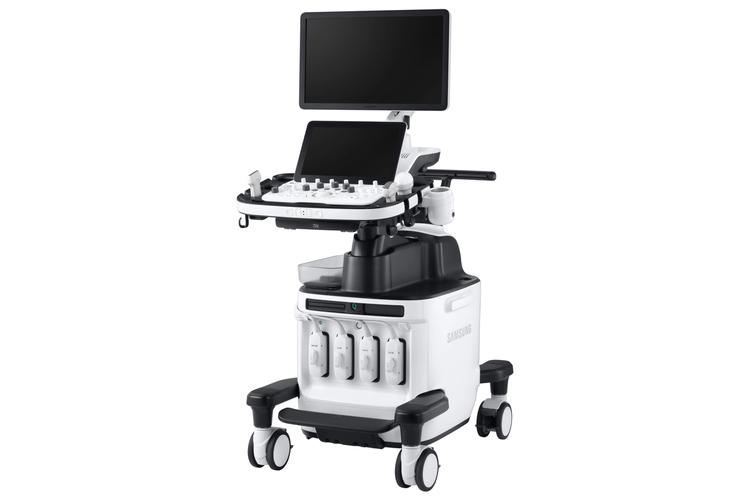

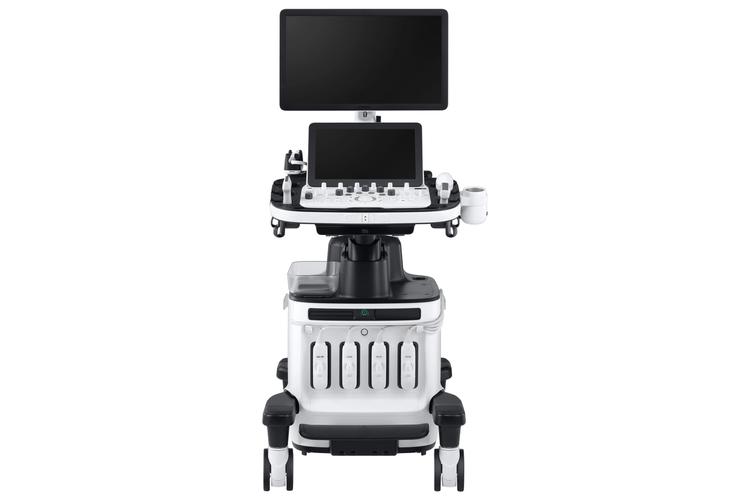

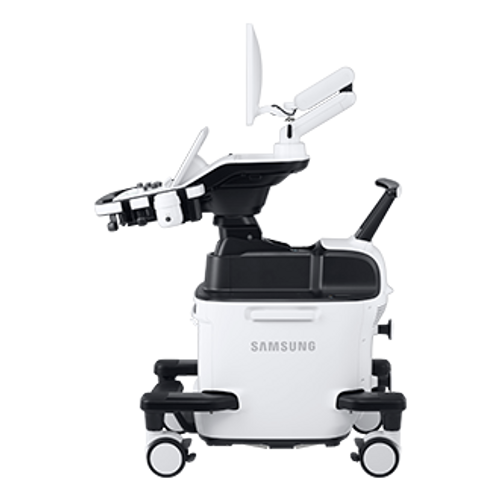

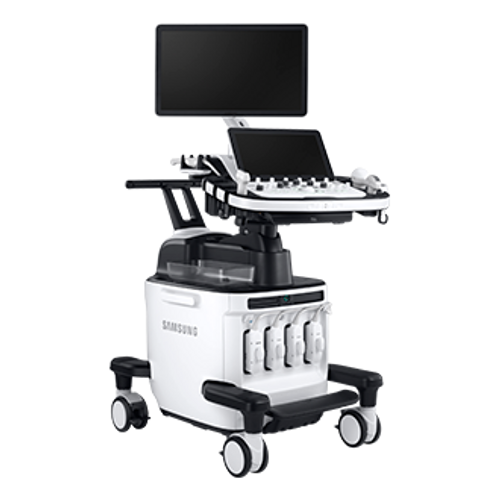

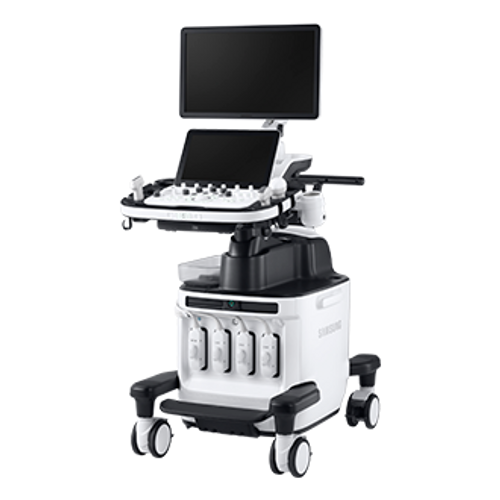

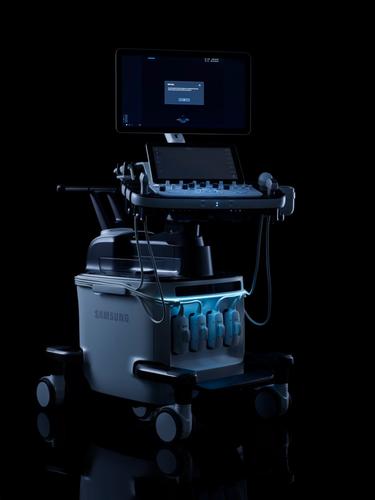

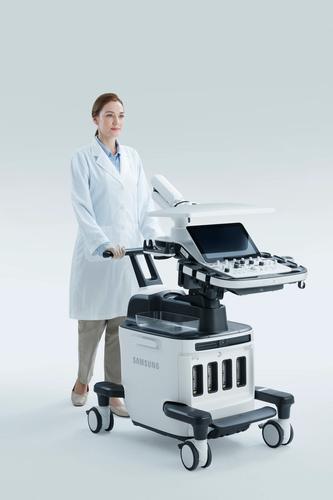

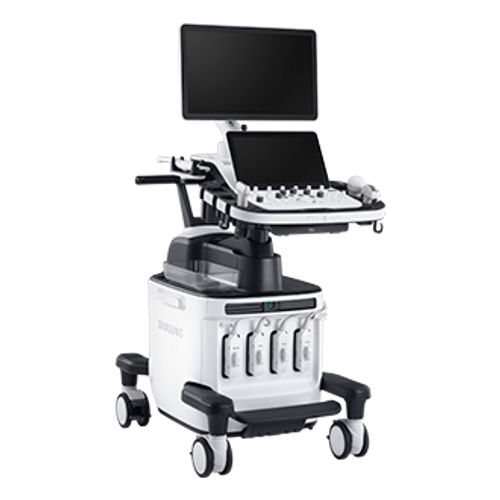

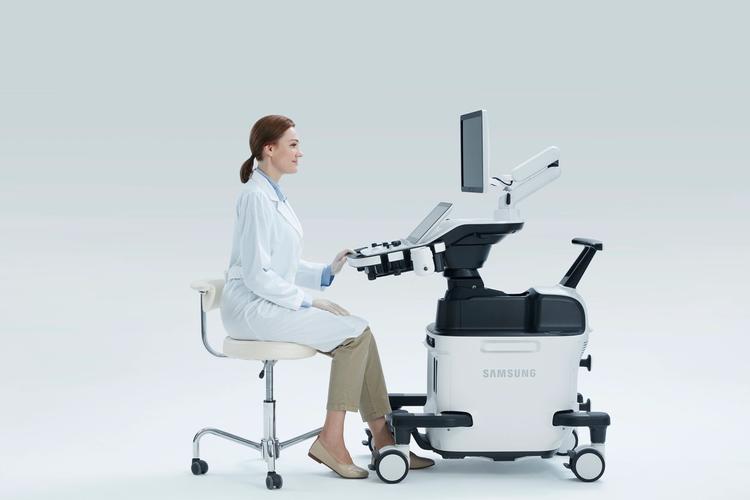

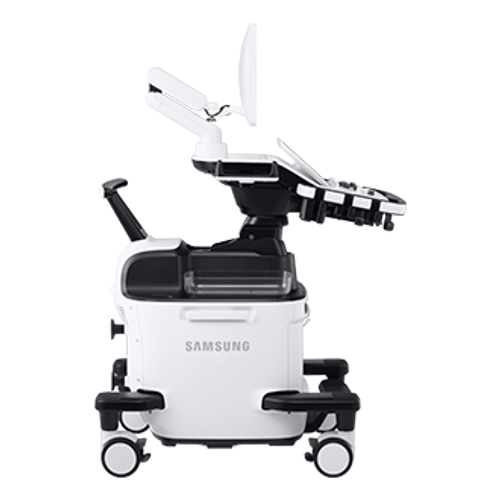

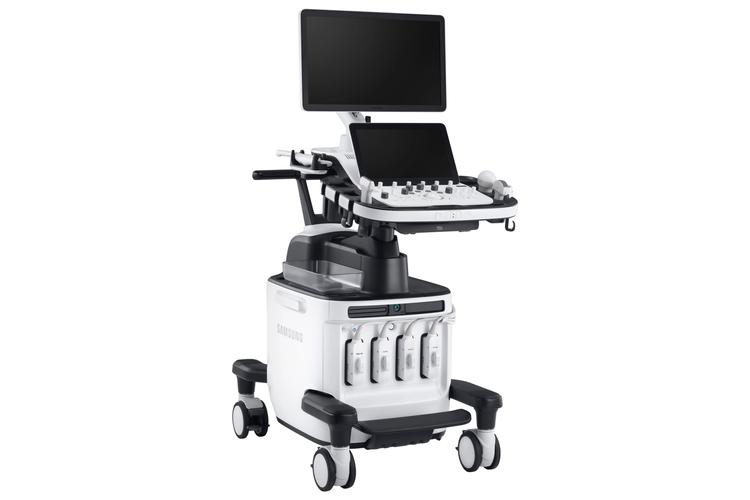

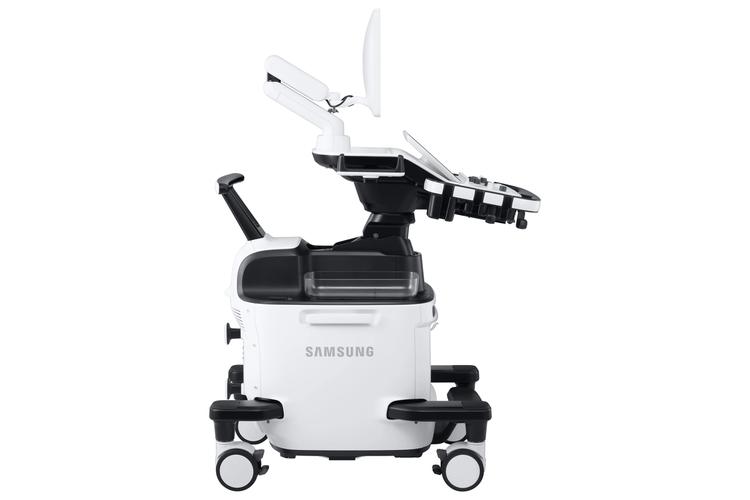

Meet the new premium women’s ultrasound designed to elevate confidence and efficiency in women’s healthcare. The new HERA W9 ultrasound system combines superior imaging technology with ergonomic design to advance workflow. Featuring the innovative Crystal Architecture™ and premier image processing technologies, HERA W9 produces realistic, high-resolution images for exceptional accuracy.

CrystalLive™ 2D & Color

Sophisticated 2D & Color Images Processed by CrystalLive™

CrystalLive™ helps you to make more confident diagnoses with fundamental 2D images and enhanced color performance. Some of the major advantages of this technology are lessened halo artifacts of 2D images. The new color signal processing with greater sensitivity allows for a more accurate detection and visualization of the slow flow of microvascularized structures, blood flow and small vessels.

symbolic image


ShadowHDR selectively applies high-frequency and low- frequency of the ultrasound to identify shadow areas such as fetal head or spine where attenuation occurs.


MV-Flow offers a novel alternative to power Doppler for visualizing slow flow of microvascularized structures. High frame rates and advanced filtering enable MV-Flow to provide a detailed view of blood flow in relation to surrounding tissue or pathology with enhanced spatial resolution.

symbolic image


LumiFlow is a three-dimensional visualization of blood flow, which helps to understand the structure of blood flow and small vessels intuitively.

CrystalLive™ in 3D/4D

Realistic Description of 3D/4D Performance

CrystalLive™ in 3D/4D provides users with more realistic and high-resolution images. It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects.

symbolic image


CrystalVue is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a combination of intensity, gradient and position.

symbolic image


RealisticVue displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.

symbolic image


HDVI is a volume rendering technology that improves visualization of edges and small structures in volume data. Upgraded marginal expression and image saturation expresses the very details from angle to shadow of the fetus.

Crystal Clear Cycle™

Samsung’s Commitment to Life-Long Healthcare for Women

Crystal Clear Cycle™, an integrated solution for women’s health issues, represents Samsung’s commitment to ensuring life-long healthcare for women. The Crystal Clear Cycle™ categorizes the most significant health events for women into six stages and provides effective diagnostic solutions at each stage.

symbolic image


A semi-automatic technology for biometric measurement, BiometryAssist, enables users to measure the fetal growth parameters such as BPD, HC, AC and FL with one click while maintaining exam consistency.

symbolic image


Within a recorded volume, 5D NT ™ automatically detects the mid-sagittal 3D sectional plane of the fetal head area and enlarges it to the appropriate format.

symbolic image


E-Cervix ™ (ElastoScan ™ for cervix) is a tool for determining the tissue stiffness of the cervix and calculates a strain ratio of the external and internal bone. These additional measurement parameters provide you with additional diagnostic information that can be helpful in assessing a possible premature birth.
